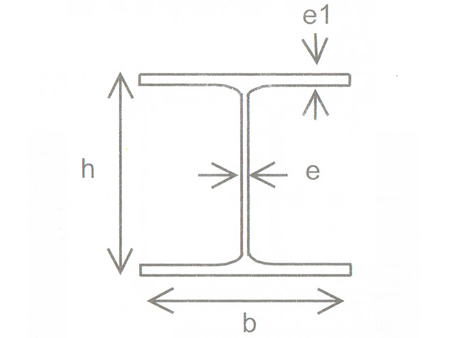

| Medidas |
KG/M |
Sección en mm.
h |
Sección en mm.
b |
Sección en mm.
e |
Sección en mm.
e1 |
| 100 |
17,12 |
96 |
100 |
5,0 |
18,0 |
| 120 |
20,40 |
114 |
120 |
5,0 |
18,0 |
| 140 |
25,32 |
133 |
140 |
5,5 |
18,5 |
| 160 |
31,16 |
152 |
160 |
6,0 |
19,0 |
| 180 |
36,39 |
171 |
180 |
6,0 |
19,5 |
| 200 |
43,36 |
190 |
200 |
6,5 |
10,0 |
| 220 |
51,76 |
210 |
220 |
7,0 |
11,0 |
| 240 |
61,81 |
230 |
240 |
7,5 |
12,0 |
| 260 |
69,91 |
250 |
260 |
7,5 |
12,5 |
| 280 |
78,31 |
270 |
280 |
8,0 |
13,0 |
| 300 |
90,51 |
290 |
300 |
8,5 |
14,0 |
| 320 |
100,04 |
310 |
300 |
9,0 |
15,5 |
| 340 |
107,63 |
330 |
300 |
9,5 |
16,5 |
| 360 |
114,80 |
350 |
300 |
10,0 |
17,5 |
| 400 |
128,13 |
390 |
300 |
11,0 |
19,0 |
| 450 |
143,50 |
440 |
300 |
11,5 |
21,0 |
| 500 |
158,88 |
490 |
300 |
12,0 |
23,0 |
| 550 |
170,15 |
540 |
300 |
12,5 |
24,0 |
| 600 |
182,45 |
590 |
300 |
13,00 |
25,0 |
| 650 |
194,75 |
640 |
300 |
13,5 |
26,0 |
| 700 |
209,10 |
690 |
300 |
14,5 |
27,0 |
| 800 |
229,60 |
790 |
300 |
15,0 |
28,0 |
| 900 |
258,30 |
890 |
300 |
16,0 |
30,0 |
| 1000 |
278,80 |
990 |
300 |
16,5 |
31,0 |
|
